產品名稱:

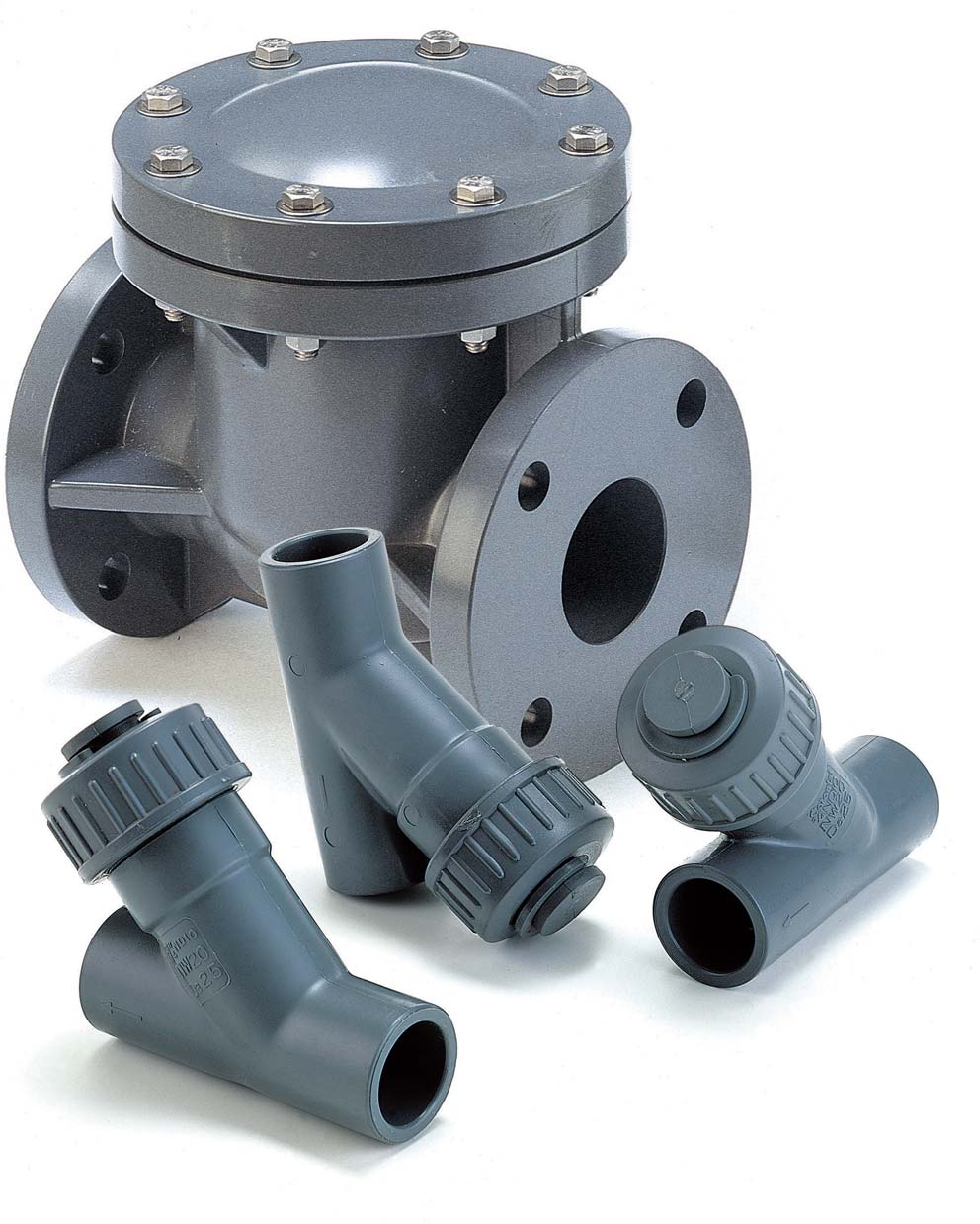

VP-220 T(Y)型過濾器
|
|
描述:
- 濾網拆卸清洗方便
- 濾網規格：
T型-SUS 304 / 316
60 / 40 / 20 mesh
3~8mm孔目等客戶訂製規格
Y型-PE / 20 mesh
SUS / 40 / 60 mesh
注意 : 不建議用壓縮空氣或氣體來做測試, 輸送或貯存
特性:
|
規格:
| 型號 |
尺寸 |
規格 |
材質 |
墊片 |
接口 |
| VP-220 T type |
2"~8" |
ANSI, JIS, DIN |
PVC |
EPDM, PTFE, FPMR |
Flanged |
| VP-220 Y type |
1/2"~2" |
ANSI, JIS, DIN |
PVC |
EPDM, FPM |
Union, Socket, Flanged |
| VP-221 T type |
2"~8" |
ANSI, JIS, DIN |
CPVC |
EPDM, PTFE, FPM |
Flanged |
| VP-221 Y type |
1/2"~2" |
ANSI, JIS, DIN |
CPVC |
EPDM, FPM |
Union, Socket, Flanged |
| NO. |
PART |
MATERIAL |
Q'TY |
| 1 |
本體(BODY) |
UPVC,CPVC |
1 |
| 2 |
上�(BONNET) |
UPVC,CPVC |
1 |
| 3 |
90°彎頭(90°ELL) |
UPVC,CPVC |
1 |
| 4 |
內濾網本體(INNER BODY) |
UPVC,CPVC |
1 |
| 5 |
外濾網本體(OUTER BODY) |
UPVC,CPVC |
1 |
| 6 |
本體墊圈(GASKET) |
EPDM,FPM |
1 |
| 7 |
濾網(FILTER) |
PP,SUS |
1 |
| 8 |
螺絲組(BOLT SETS) |
STEEL-SUS,304 |
8 ~ 16 |
T-type Strainer DIM.
| SIZE |
2"
(50mm) |
2-1/2"
(65mm) |
3"
(80mm) |
4"
(100mm) |
6"
(150mm) |
8"
(200mm) |
| JIS |
D |
155 |
175 |
185 |
210 |
285 |
330 |
| D1 |
120 |
140 |
150 |
175 |
240 |
290 |
| n-Øe |
4-19 |
4-19 |
8-19 |
8-19 |
8-23 |
12-23 |
| ANSI |
D |
152 |
178 |
191 |
229 |
285 |
343 |
| D1 |
121 |
140 |
152 |
191 |
241 |
299 |
| n-Øe |
4-19 |
4-19 |
4-19 |
8-19 |
8-23 |
8-23 |
| DIN |
D |
165 |
185 |
200 |
220 |
285 |
343 |
| D1 |
125 |
145 |
160 |
180 |
240 |
295 |
| n-Øe |
4-18 |
4-18 |
8-18 |
8-18 |
8-22 |
8-22 |
| L |
200 |
240 |
260 |
300 |
400 |
500 |
| H |
165 |
168.5 |
169 |
217 |
285 |
338 |
| T |
20 |
22 |
22 |
24 |
26 |
30 |
Y-type Strainer(Flange) DIM.
| SIZE |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
| Nom |
(15mm) |
(20mm) |
(25mm) |
(32mm) |
(40mm) |
(50mm) |
| JIS |
ØD |
95 |
100 |
125 |
135 |
140 |
155 |
| ØD1 |
70 |
75 |
90 |
100 |
105 |
120 |
| L |
160 |
175 |
202 |
245 |
247 |
292 |
| T |
14 |
15 |
15 |
16 |
16 |
20 |
| n-Øe |
4-15 |
4-15 |
4-19 |
4-19 |
4-19 |
4-19 |
| ANSI |
ØD |
89 |
98 |
108 |
117 |
127 |
152 |
| ØD1 |
61 |
70 |
79 |
89 |
98 |
121 |
| L |
154 |
170 |
200 |
245 |
250 |
290 |
| T |
11 |
12 |
14 |
16 |
17.5 |
19 |
| n-Øe |
4-16 |
4-16 |
4-16 |
4-16 |
4-16 |
4-19 |
 |
| NO. |
PART |
MATERIAL |
Q'TY |
| 1 |
本體(BODY) |
UPVC,CPVC |
1 |
| 3 |
螺帽(UNION NUT) |
UPVC,CPVC |
1 |
| 4 |
濾網(FILTER) |
PP,PE,SUS |
1 |
| 5 |
卡環(SET RING) |
UPVC,CPVC |
1 |
| 6 |
本體O環(O-RING) |
EPDM,FPM |
1 |
| 7 |
濾網架(FILTER HOLDER) |
UPVC,CPVC |
1 |
| 8 |
塞子(RETAINING RING) |
UPVC,CPVC |
1 |
| 9 |
法蘭片(FLANGE) |
UPVC,CPVC |
2 |
| 10 |
由令(UNION) |
UPVC,CPVC |
2 |
| 11 |
直管(PIPE) |
UPVC,CPVC |
2 |
Y-type Strainer(Union)DIM.
| SIZE |
1/2"
(15mm) |
3/4"
(20mm) |
1"
(25mm) |
1-1/4"
(32mm) |
1-1/2"
(40mm) |
2"
(50mm) |
| JIS |
Ød1 |
22.3 |
26.3 |
32.33 |
38.43 |
48.46 |
60.56 |
| Ød2 |
21.7 |
25.7 |
31.67 |
37.57 |
47.54 |
59.44 |
| I |
22.2 |
25.4 |
28.58 |
31.75 |
34.93 |
38.1 |
| ANSI |
Ød1 |
21.54 |
26.87 |
33.65 |
42.42 |
48.56 |
60.63 |
| Ød2 |
21.23 |
26.57 |
33.27 |
42.04 |
48.11 |
60.17 |
| I |
22.22 |
25.4 |
28.58 |
31.75 |
34.93 |
38.1 |
| DIN |
Ød1 |
20.3 |
25.3 |
32.3 |
40.3 |
50.3 |
63.3 |
| Ød2 |
19.9 |
24.9 |
31.9 |
39.9 |
49.9 |
62.9 |
| I |
16 |
19 |
22 |
26 |
31 |
38 |
| ØD |
46.5 |
55 |
66 |
82 |
98 |
120 |
| L |
202 |
233 |
261 |
324 |
334 |
377 |
| L1 |
56 |
64 |
72 |
87 |
90 |
98 |
Y-type Strainer(Socket) DIM.
| SIZE |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
| (15mm) |
(20mm) |
(25mm) |
(32mm) |
(40mm) |
(50mm) |
| ANSI |
Ød1 |
21.54 |
26.87 |
33.65 |
42.42 |
48.56 |
60.63 |
| Ød2 |
21.23 |
26.57 |
33.27 |
42.04 |
48.11 |
60.17 |
| I |
22.22 |
25.4 |
28.58 |
31.75 |
34.93 |
38.1 |
| D |
30 |
36 |
44 |
61 |
61 |
77 |
| L |
90 |
105 |
117 |
150 |
154 |
181 |
|
|
|
|
|
